Product Details

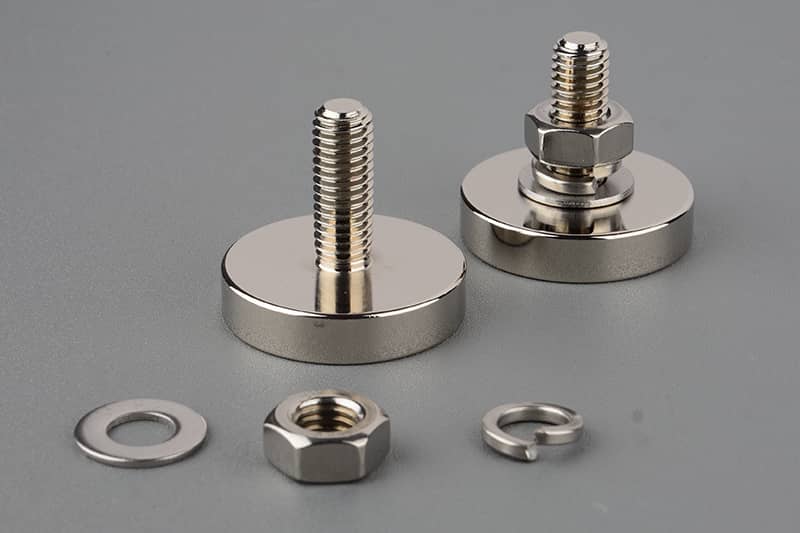

The NdFeB magnet pot with metric male threads can be directly screwed onto products with a mating female hole or used with a nut for installation; the magnet pot  contains a high-performance NdFeB magnet with stronger pull force, while the steel housing protects the built-in magnet from cracking and chipping.
PARAMETERS:
⚫ Material: Neodymium Magnet N35
⚫ Diameter: 40mm; Height:8mm;     MALE THREAD:M10*20mm
⚫ Coating: Ni+Cu+Ni
⚫ Vertical Pull force:65kg
⚫ Max Working Temperature: 80 ℃
FEATURES:

⚫ NEODYMIUM MAGNET STRONGER

⚫ MAGNET POT WITH MALE THREAD，EASY MOUNTING.

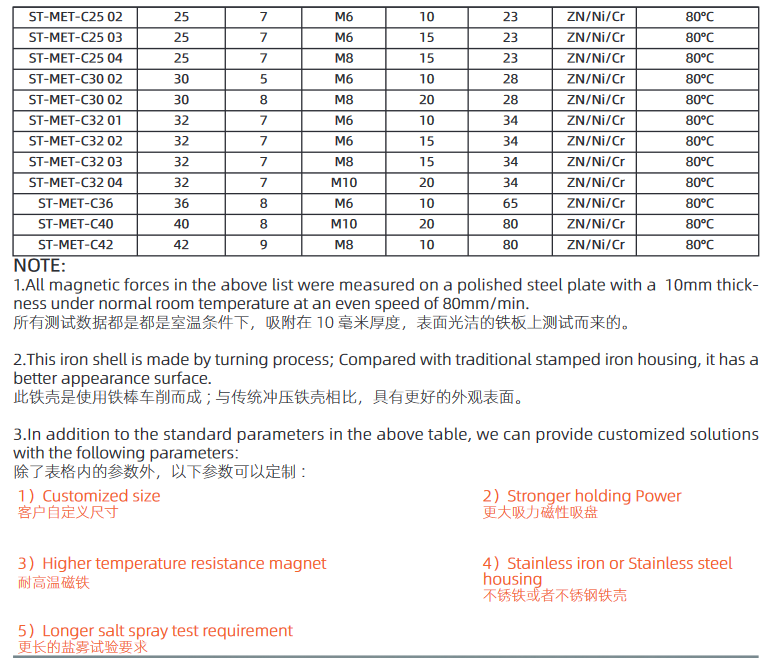

For more sizes, please refer to the table below
