The imperial magnet pot refers to magnet pots whose threads are expressed in imperial units of measurement. Its pitch and thread diameter are both measured in inches, and threads of different sizes are defined and regulated by the standard inch thread specifications. For example: 1/4-20’, 1/4 represents the major diameter of the thread, 20 means the number of thread per inch.
The NdFeB magnet pot can be directly screwed onto products with a female thread hole or used with a nut for installation.
PARAMETERS:⚫ Material: Neodymium Magnet N35
⚫ Diameter: 42mm; Height:9mm; MALE THREAD:1/4''-20*25mm
⚫ Coating: Ni+Cu+Ni
⚫ Vertical Pull force:68kg
⚫ Max Working Temperature: 80 ℃
FEATURES:
⚫ NEODYMIUM MAGNET STRONGER
⚫ MAGNET POT WITH MALE THREAD 1/4''-20，EASY MOUNTING.
⚫ SHEAR FORCE BECOME STRONGER DUE TO SOFT RUBBER AND PROTECT THE ATTACHED SURFACE FROM SCRATCH.

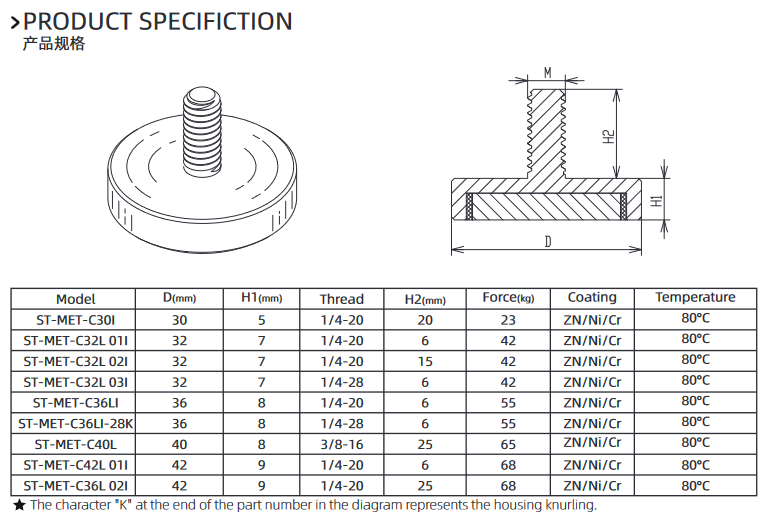

For more sizes, please refer to the table below
