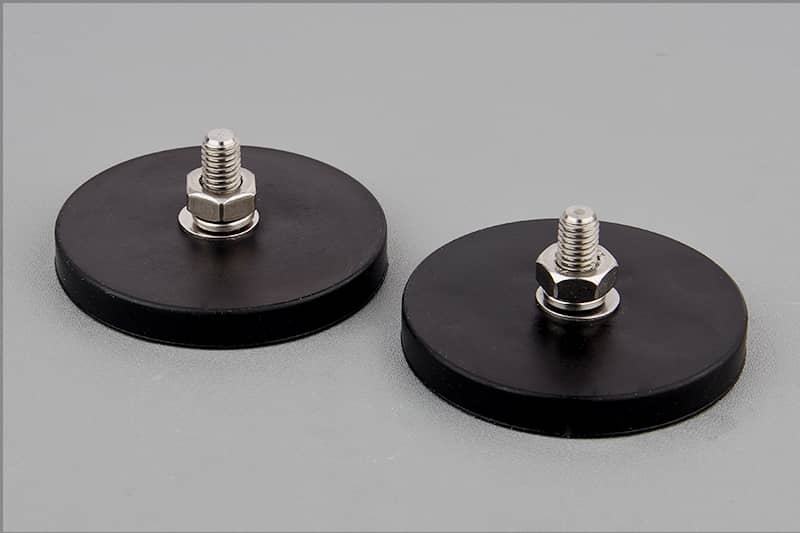

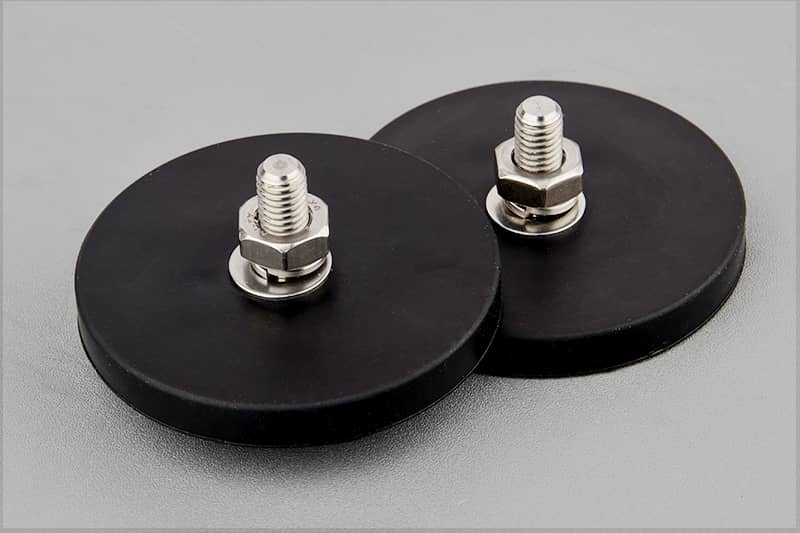

The rubber coated neodymium magnet pot can be directly screwed onto products with a matching female thread or installed with a washer and nut. The outer rubber coating of the magnet prevents these magnets from cracking and chipping during use and avoids scratching the adhered surface, while also enhancing corrosion resistance of the product, making it suitable for outdoor or other damp, corrosive settings.PARAMETERS:
⚫ Material: Neodymium Magnet N35
⚫ Diameter: 66mm; Height:8.5mm; Male Thread :M8*20mm
⚫ Coating: Zn+Silicone Rubber
⚫ Vertical Pull force :48kg
⚫ Max Working Temperature: 80 ℃
FEATURES:
⚫ Stronger friction,stronger shear force , Non-slip.
⚫ Anti-scratch due to a layer soft rubber, avoid any scratch of electroplating /painting surface or other sensitive surface, for examples car body , precision machine.
⚫ Better corrosion resistance due to full/part covered rubber, widely used outdoors or in other corrosion environments.
⚫ Long life expectancy due to the coated rubbe
Due to stronger shear force, anti-scratch and weatherproof of rubber coated magnets,They are ideal for indoor and outdoor applications where high magnetic strength and corrosion resistance is required. They are frequently used for holding, mounting and fixing purposes, from mounting lights or fixtures to equipment repair, holding tools and organizing items in warehouses, workstations and outdoor areas.
For more sizes, please refer to the table below：
