The sensor magnet pot with external threads
and two foot is designed specially for ferrous metal curved surface.It
can be easily adsorbed on the curved surface of any iron object, for
examples high-power motor, oil and gas pipelines. Compared with
traditional flat magnet pots, it relies on the feet at the bottom for
magnetic conduction, making the contact larger and the adsorption more
attractive. The stainless steel housing has excellent corrosion
resistance and can be used in humid, acid-base environments. The
neodymium magnet 150°C and samarium cobalt magnets with a higher
temperature resistance (350°C) are available.
PARAMETERS:
⚫ Material: Neodymium Magnet N35
⚫ Diameter: 25mm; Height:10mm; Male Thread :1/4''-20*5mm
⚫ Coating: Ni+Black Epoxy
⚫ Vertical Pull force :15kg
⚫ Max Working Temperature: 120℃
FEATURES:
⚫ TWO-FOOT MAGNETIC POLES,EASILY ATTACH TO CURVED OR FLAT SURFACE
⚫ SHORT MALE THREAD,FASTEN DIRECTLY INTO SENSON DIRECTLY
⚫ STAINLESS STEEL HOUSING EXCELLENT CORROSIONRESISTANT USED IN HARSH ENVIROMENTS
⚫ HIGH-TEMPERATURE RESISTANT NEODYMIUM MAGNET 150 ℃ AND SmCo 350 ℃ ARE AVAILABLE.

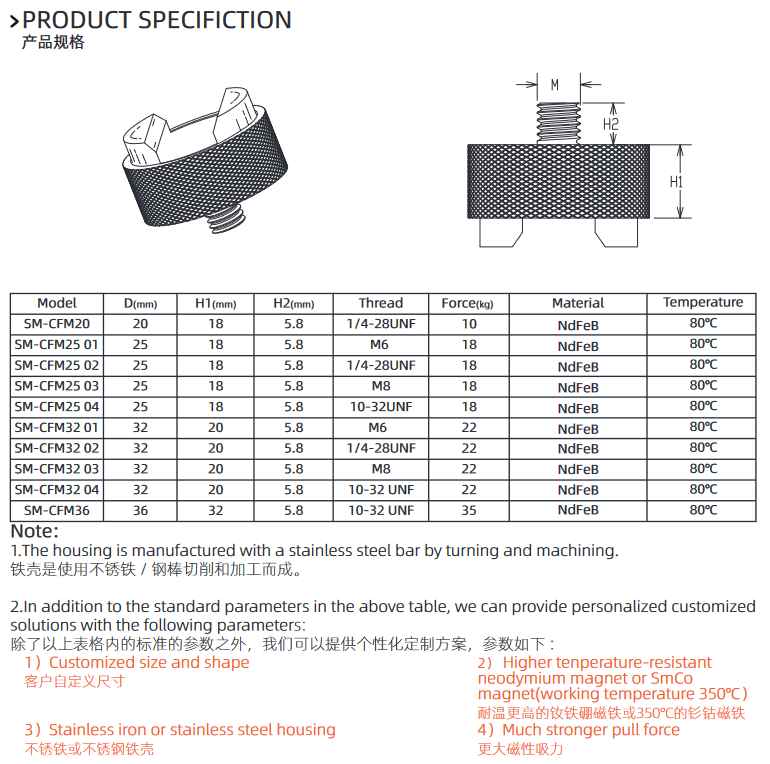

For more sizes, please refer to the table below：
