Screwed onto sensors with corresponding female threads. With a high performance neodymium magnet, its magnetic pull force is stronger. The steel housing can protect the built-in magnet cracking and chipping during usage.
The neodymium magnet 150°C and samarium cobalt magnets with a higher temperature resistance (350°C) are available.
PARAMETERS:
⚫ Material: Neodymium Magnet N35
⚫ Length ( each side) 36mm ; Height:8mm; Male Thread :1/4''28*5mm
⚫ Coating: Ni
⚫ Vertical Pull force :55kg
⚫ Max Working Temperature: 120℃
FEATURES:
⚫ 1/4''-28 MALE THREAD ,EASY MOUNTING
⚫ HIGH PERFORMANCE NEODYMIUM MAGNET，STRONG PULL-FORCE
⚫ MAGNETIC MOUNTING ,EASY AND FAST INSTALLATION ON THE MACHINES SURFACE.
⚫STAINLESS STEEL HOUSING AND HIGH WORKING TEMPERATURE NEODYMIUM MAGNETS 150℃ OR SMCO ARE AVAILABLE.

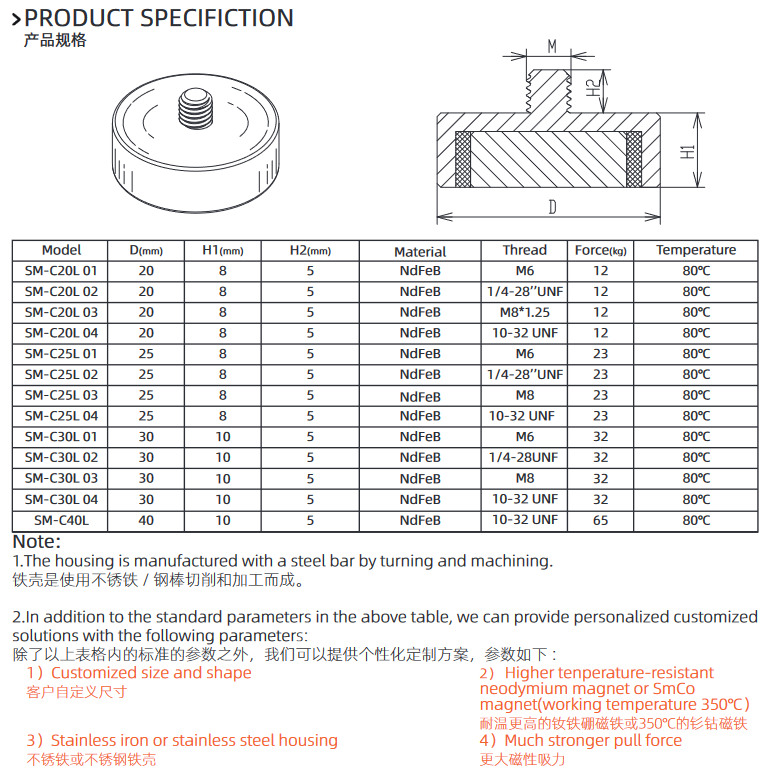

For more sizes, please refer to the table below：
