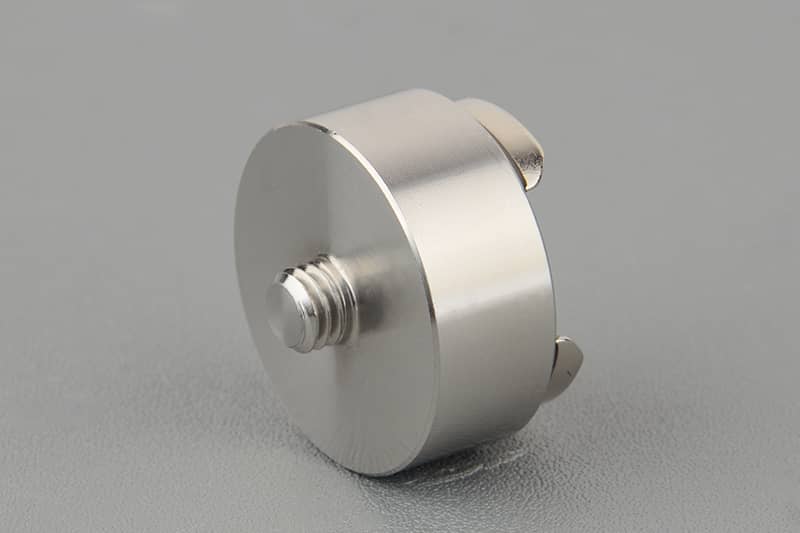

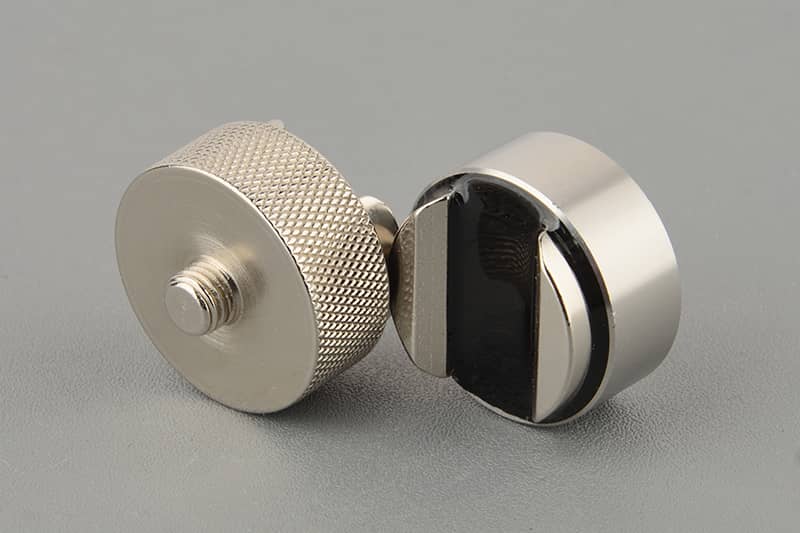

The vibration sensor magnet pot with external threads and two foot is designed specially for ferrous metal curved surface of wind turbines.It can be easily adsorbed on the curved surface of the high-power motor for wind turbine. Compared with traditional flat magnet pots, it relies on the feet at the bottom for magnetic conduction, making the contact larger and the adsorption more attractive. The stainless steel housing has excellent corrosion resistance and can be used in humid, acid-base environments. The neodymium magnet 150°C and samarium cobalt magnets with a higher temperature resistance (350°C) are available.
PARAMETERS:
⚫ Material: Neodymium Magnet N35
⚫ Diameter: 25mm; Height:10mm; Male Thread :1/4''-20*5mm
⚫ Coating: Ni+Black Epoxy
⚫ Vertical Pull force :15kg
⚫ Max Working Temperature: 120℃
FEATURES:
⚫ TWO-FOOT MAGNETIC POLES,EASILY ATTACH TO CURVED OR FLAT SURFACE
⚫ SHORT MALE THREAD,FASTEN DIRECTLY INTO SENSON DIRECTLY
⚫ STAINLESS STEEL HOUSING EXCELLENT CORROSIONRESISTANT USED IN HARSH ENVIROMENTS
⚫ HIGH-TEMPERATURE RESISTANT NEODYMIUM MAGNET 150 ℃ AND SmCo 350 ℃ ARE AVAILABLE.
For more sizes, please refer to the table below：
